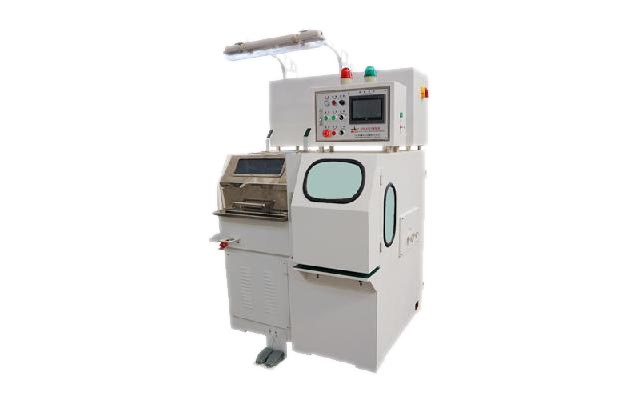

Extreme-fine Silver Wire Drawing Machine

Extreme-fine Silver Wire Drawing Machine

Extreme-fine silver wire drawing machine below 0.01 mm (10 μm) is a cutting-edge equipment in the field of metal microfabrication, specifically used for producing ultra precision silver wire required for high value-added products such as electronic packaging, microelectromechanical systems (MEMS), medical catheters, etc. This type of equipment represents the highest level of current metal wire processing technology.

Structure Characteristics

Due to its extremely high processing accuracy, the ultra-fine wire drawing machine has significant structural differences from traditional drawing machines, mainly including the following core modules:
Feeding
Ultra fine gold wire with an initial diameter of 10 µm or more. Adopting constant tension wire release to avoid wire breakage caused by tension fluctuations.
Stretching System
The mold is made of single-crystal diamond (SCD) or polycrystalline cubic boron nitride (PCBN) material. Ultra high precision polishing (Ra<5nm) to reduce friction and surface damage. The drawing method adopts multi pass micro stretching (with a reduction rate of less than 5% per pass).
Tension Control
Contactless measurement+closed-loop feedback to ensure tension fluctuation<0.1%.
Take-up System
Precision wire guide ensures even winding. Vacuum or inert gas environment winding to prevent oxidation.

Extreme-fine Silver Wire Drawing Machine Datasheet

Item/Model	45S
Inlet Wire Diameter	0.0112-0.0174 mm
Outlet Wire Diameter	0.0085-0.013 mm
Line Speed (Max.)	600 m/min
No. of Dies (Max.)	10
Reduction Rate	5%, final: 4.5%
Drawing Method	Spray sliding type
Tower Wheel	φ45
Main Motor	Servo, 0.4 KW * 5
Take-up Motor	Servo, 0.4 KW
Traverse Motor	0.4 KW
Pump Motor	90 W
Lighting	220V, 40W
Brake	/
Speed Control	Potentiometer
Traverse Method	Ball screw transmission
Lubrication	Spray type
Overall Size	1680x1090x1630 mm
Total Weight	1.0 T

Extreme-fine Silver Wire Drawing Machine Application

The extreme-fine silver wire drawing machine is a cutting-edge equipment in the field of metal microfabrication, specifically used for producing ultra precision silver wire required for high value-added products such as electronic packaging, microelectromechanical systems (MEMS), medical catheters, etc. It is mainly used in the following scenarios:
1. Silver wire bonding for semiconductor packaging;
2. Micro sensor conductive wire;
3. Neural electrode array;
4. Space grade flexible circuit;
5. Quantum device connection line.
