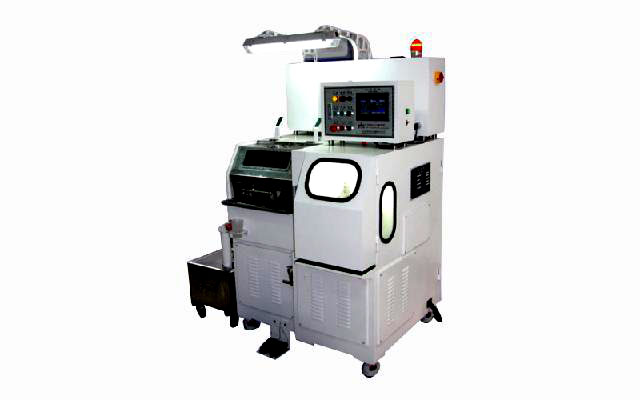

Ultrafine Silver Wire Drawing Machine

Ultrafine Silver Wire Drawing Machine

The ultra-fine silver wire drawing machine is a high-precision metal processing equipment specifically designed to process silver materials (such as silver bars and wires) into micrometer sized (0.01mm~0.1mm) ultra-fine silver wires through multiple stretching processes. This type of equipment has important applications in precision electronics, high-end jewelry, medical and scientific research fields.

Ultrafine Silver Wire Drawing Machine Datasheet

Item/Model	60S/60F	85S/85F	100F
Inlet Wire Dia.	0.018-0.038 mm	0.027-0.057 mm	0.055-0.120 mm
Outlet Wire Dia.	0.012-0.025 mm	0.017-0.035 mm	0.022-0.040 mm
Line Speed (Max.)	600-1200 m/min	800-1500 m/min	1800 m/min
No. of Dies (Max.)	12	15/16	24
Reduction Rate	6%, final: 5%	6%, final: 5%	8%, final: 7%
Drawing Method	Spray sliding type	Spray sliding type	Spray sliding type
Tower Wheel	φ60	φ85	φ100
Main Motor	Servo, 0.75 KW * 4 / 1.5 KW	2.2 KW	3 KW
Take-up Motor	Servo, 0.4 KW	0.55 KW	1.1 KW
Traverse Motor	0.4 KW	0.4 KW	0.4 KW
Pump Motor	90 W	90 W	120 W
Lighting	/	220V, 40W	220V, 40W
Brake	24V, 22W	24V, 22W	24V, 30W
Speed Control	Potentiometer	Potentiometer	Potentiometer
Traverse Method	Ball screw transmission	Ball screw transmission	Ball screw transmission
Lubrication	Spray type	Spray type	Spray type
Overall Size	1450x1020x1580 mm	1520x1090x1580 mm	1825x1055x1660 mm
Total Weight	1.0 T	1.0 T	1.1 T

Ultrafine Silver Wire Drawing Machine Application

The ultra-fine silver wire drawing machine is mainly used in the following scenarios:
1. Precision electronic components (such as integrated circuit bonding wires, sensor wires)
2. High end jewelry (such as ultra-fine silver chains and micro inlaid silk)
3. Medical field (such as silver alloy wire for dental restoration).
