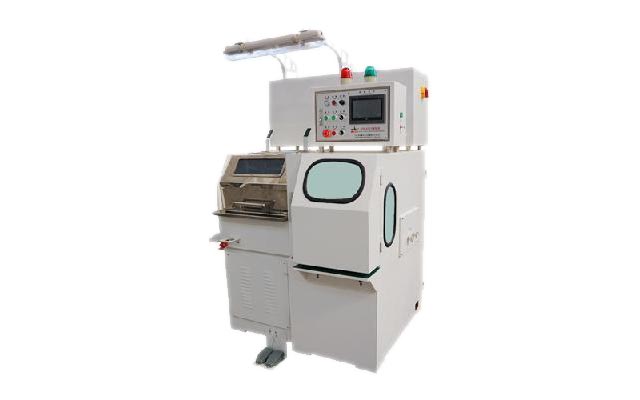

Gold Wire Drawing Machine

Gold Wire Drawing Machine

Gold wire drawing machine is a specialized equipment for precision drawing of precious metal (such as gold, silver, etc.) wires. It gradually refines the coarse gold wire to a micrometer diameter through multiple stretching processes, while ensuring that the surface smoothness, roundness, and mechanical properties of the wire meet high standard requirements. Compared to ordinary metal wire drawing machines, gold wire drawing machines have higher requirements for speed control accuracy, equipment coordination, and cleanliness, and are commonly used in fields such as electronic components, jewelry, and precision instruments.

Core Structure

Raw material supply system: Provide initial gold wire materials and ensure stable supply.
Stretching device: Including fine pull tower wheel, micro pull tower wheel and mold, gradually reducing the wire diameter through multi-stage drawing.
Tension control devices: Such as resistance devices and slip wheels, maintain a constant tension during the drawing process.
Speed measurement and feedback system: The speed measurement wheel monitors the line speed in real-time and achieves closed-loop control through PID regulation.
Winding and wiring system: The swinging screw and winding wheel ensure that the gold wire is evenly wound, avoiding edge collapse or thread defects.

Classification

According to the thickness of the material (wire), gold wire drawing machines can usually be divided into the following types, each corresponding to different wire diameter ranges and processing requirements:

Coarse Gold Wire Drawing Machine

Applicable wire diameter range: 0.5 mm-3.0 mm (initial raw material wire)
Characteristic:
Used for preliminary drawing of precious metal wires, processing raw materials such as ingots or coarse wires to medium diameters.
The equipment structure is simple, emphasizing high pulling force and high-power main motor.
Multi stage tower wheels or inline mold sets are often used, with a high reduction rate (up to 20%~30% per pass).

Medium-fine Gold Wire Drawing Machine

Applicable wire diameter range: 0.1 mm-0.5 mm
Characteristic:
Used for processing precious metal wires with medium fineness, further reducing wire diameter and improving surface smoothness.
Precision tension control and lubrication systems (such as oil film lubrication or emulsion lubrication) are required.
Usually equipped with closed-loop speed regulation and automatic wiring device.

Fine Gold Wire Drawing Machine

Applicable wire diameter range: 0.03 mm-0.1 mm
Characteristic:
Specially designed for high-precision fine wires, suitable for electronic industry bonding wires, micro jewelry and other scenarios.
Using high hardness diamond or polycrystalline molds, the reduction rate gradually decreases (about 10%~15% per pass).
Configure a constant tension system (such as magnetic powder brake or servo feedback control) to avoid wire breakage.

Ultrafine Gold Wire Drawing Machine

Applicable wire diameter range:0.01-0.03 mm
Characteristic:
Used for processing ultrafine precious metal wires (such as semiconductor packaging gold wires, medical wires).
Requires ultra-high cleanliness environment (dust-proof, constant temperature and humidity) and nanometer level mold accuracy.
Adopting non-contact tension control (such as laser velocimetry and air flotation guidance) to reduce surface damage.
Core configuration: Multi servo collaborative control, nanoscale caliper, vacuum annealing device.

Extreme-fine Gold Wire Drawing Machine

Applicable wire diameter range:< 0.01 mm
Characteristic:
Used for processing ultrafine precious metal wires (such as semiconductor packaging gold wires, medical wires).
Requires ultra-high cleanliness environment (dust-proof, constant temperature and humidity) and nanometer level mold accuracy.

Multi-level Continuous Gold wire Drawing Machine

Applicable wire diameter range: covering the entire process from coarse drawing to ultrafine drawing (0.5 mm → micrometer level)
Characteristic:
Integrate coarse, medium, and fine drawing modules to achieve wire refinement in one go through continuous multi pass processing.
Equipped with an intelligent control system, it automatically adjusts the mold aperture, lubrication parameters, and tension matching.
Typical structure: combination of tower wheel assembly and precision winding reel.

Gold Wire Drawing Machine Datasheet

Item/Model	45S	60S/60F	85S/85F	100F	120F	220F
Inlet Wire Dia.	0.0112-0.0174 mm	0.018-0.038 mm	0.027-0.057 mm	0.055-0.120 mm	0.076-0.35 mm	0.45-1.2 mm
Outlet Wire Dia.	0.0085-0.013 mm	0.012-0.025 mm	0.017-0.035 mm	0.022-0.040 mm	0.04-0.179 mm	0.08-0.35 mm
Line Speed (Max.)	600 m/min	1200 m/min	1500 m/min	1800 m/min	650 m/min	2200 m/min
No. of Dies (Max.)	10	12	15/16	24	13	24
Reduction Rate	5%, final: 4.5%	6%, final: 5%	6%, final: 5%	8%, final: 7%	8%, final: 7%	13%, final: 12%
Drawing Method	Spray sliding type	Spray sliding type	Spray sliding type	Spray sliding type	Spray sliding type	Spray sliding type
Tower Wheel	φ45	φ60	φ85	φ100	φ120	φ220
Main Motor	Servo, 0.4 KW * 5	1.5 KW	2.2 KW	3 KW	4 KW	4 KW
Take-up Motor	Servo, 0.4 KW	Servo, 0.4 KW	0.55 KW	1.1 KW	1.1 KW	11 KW
Traverse Motor	0.4 KW	0.4 KW	0.4 KW	0.4 KW	0.4 KW	4 KW
Pump Motor	90 W	90 W	90 W	120 W	90 W	125 W
Lighting	220V, 40W	/	220V, 40W	220V, 40W	220V, 40W	220V, 36 W
Brake	/	24V, 22W	24V, 22W	24V, 30W	24V, 22W	24V 30W
Speed Control	Potentiometer	Potentiometer	Potentiometer	Potentiometer	Potentiometer	Potentiometer
Traverse Method	Ball screw transmission	Ball screw transmission	Ball screw transmission	Ball screw transmission	Ball screw transmission	Ball screw transmission
Lubrication	Spray type	Spray type	Spray type	Spray type	Spray type	Spray type
Overall Size	1680x1090x1630 mm	1450x1020x1580 mm	1520x1090x1580 mm	1825x1055x1660 mm	1910x1010x1730 mm	1620x1565x1995 mm
Total Weight	1.0 T	1.0 T	1.0 T	1.1 T	1.0 T	2.13 T

Gold Wire Drawing Machine Application

As a high-precision precious metal processing equipment, the core technology of the gold wire drawing machine lies in multi servo collaborative control, constant tension algorithm, and clean design. It is mainly applied in the following scenarios:
Electronics Industry
Used for manufacturing microelectronic connection wires, chip key alloy wires, etc., requiring precise wire diameter (such as 3 microns) and no surface contamination.
Jewelry Processing
High purity gold wire drawn for jewelry weaving or decorative crafts.
Precision Instruments
Such as micro wires, sensor components, etc. in medical equipment.
