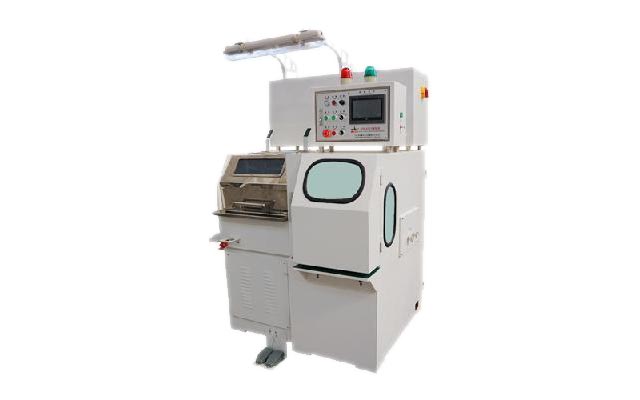

Extreme-fine Gold Wire Drawing Machine

Extreme-fine Gold Wire Drawing Machine

The extreme-fine gold wire drawing machine is an ultra precision processing equipment that further draws the initial gold wire to below 0.01 mm through multiple micro nano level stretching processes.

Technical Difficulties

Extremely small diameter (close to lattice size, prone to fracture);
Significant surface effect (high risk of oxidation and pollution);
Tension control is extremely difficult (requires non-contact measurement);
Short mold lifespan (nanometer sized pore size is prone to wear).

Structure Characteristics

Due to its extremely high processing accuracy, the ultra-fine wire drawing machine has significant structural differences from traditional drawing machines, mainly including the following core modules:
Feeding
Ultra fine gold wire with an initial diameter of 10 µm or more. Adopting constant tension wire release to avoid wire breakage caused by tension fluctuations.
Stretching System
The mold is made of single-crystal diamond (SCD) or polycrystalline cubic boron nitride (PCBN) material. Ultra high precision polishing (Ra<5nm) to reduce friction and surface damage. The drawing method adopts multi pass micro stretching (with a reduction rate of less than 5% per pass).
Tension Control
Contactless measurement+closed-loop feedback to ensure tension fluctuation<0.1%.
Take-up System
Precision wire guide ensures even winding. Vacuum or inert gas environment winding to prevent oxidation.

Extreme-fine Gold Wire Drawing Machine Datasheet

Item/Model	45S
Inlet Wire Diameter	0.0112-0.0174 mm
Outlet Wire Diameter	0.0085-0.013 mm
Line Speed (Max.)	600 m/min
No. of Dies (Max.)	10
Reduction Rate	5%, final: 4.5%
Drawing Method	Spray sliding type
Tower Wheel	φ45
Main Motor	Servo, 0.4 KW * 5
Take-up Motor	Servo, 0.4 KW
Traverse Motor	0.4 KW
Pump Motor	90 W
Lighting	220V, 40W
Brake	/
Speed Control	Potentiometer
Traverse Method	Ball screw transmission
Lubrication	Spray type
Overall Size	1680x1090x1630 mm
Total Weight	1.0 T

Extreme-fine Gold Wire Drawing Machine Application

The extreme-fine wire drawing machine is a core equipment in the field of nanomanufacturing, and its technical difficulty far exceeds that of traditional drawing machines, involving multiple cutting-edge disciplines such as ultra precision machining, nanomaterials, and intelligent control. It is mainly applied in the following scenarios:
Semiconductor Industry
Quantum computer chip interconnection: Gold wires serve as superconducting circuit connecting wires.
MEMS sensors: Ultra fine gold wires are used for signal transmission in miniature pressure sensors.
Biomedical
Neural electrode: Gold wire is used for brain computer interface (BCI) probes.
Nano surgical robot: Submicron gold wire as a conductive material for flexible robotic arms.
Scientific Research Field
Nanomaterial research: Used for preparing single atom chain gold wires (1nm level).
Superconducting Experiment: Study of Quantum Properties of Ultra fine Gold Wires in Low Temperature Environments.
