GPT Automotive Wire Extrusion Line

GPT Automotive Wire Extrusion Line

GPT cable (General Purpose Thermoplastic) is an automotive low-voltage wire under the American standard (SAE J1128) system, widely used in the conventional circuit systems of American, Japanese, and domestic vehicle models.

The GPT automotive wire extrusion line is a specialized equipment designed specifically for producing automotive low-voltage cables that comply with SAE J1128 standards, suitable for wire harness manufacturing of American, Japanese, and new energy vehicle models.

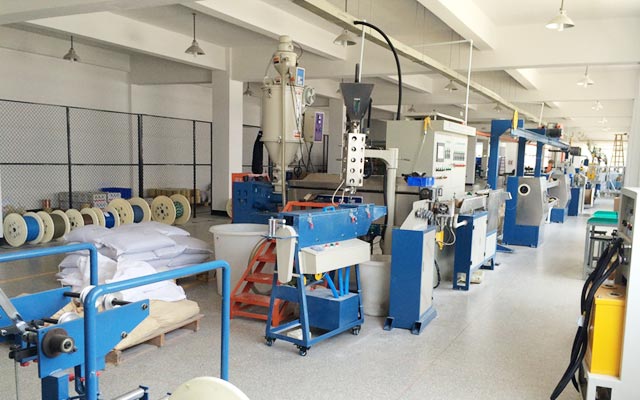

Composition of Production Line

The GPT automotive wire extrusion line mainly includes the following core equipment:
Pay off Stand: Release copper conductors to maintain stable tension.
Preheating Unit: Heat the conductor to improve insulation adhesion.
Extruder: Melt PVC coat the conductor.
Cooling Tank: Segmented cooling and shaping insulation layer.
Haul off: Control the speed of the production line.
Take-up Reel: Automatic winding of finished wires.
Testing Equipment: Spark tester, laser diameter measuring system, etc.

Process Flow

Pay-off → Preheating → Extrusion coating → Cooling and shaping → Spark detection → Printing → Take-up.

GPT Automotive Wire Extrusion Line Datasheet

Model	50	60	70
Pay-off Type	Active or passive	Active or passive	Active or passive
Screw Diameter	φ50 mm	φ60 mm	φ70 mm
Screw L/D Ratio	25:1	26:1	26:1
Extrusion Amount	70 kg/hr	110 kg/hr	160 kg/hr
Outlet Wire	φ0.75-4 mm	φ0.8-8 mm	φ1.5-12 mm
Main Motor	11 KW	18.5 KW	37 KW
Cooling Device	U type	U type	U type
Storage Rack	Horizontal	Horizontal	Horizontal
Traction Power	4 KW	4 KW	4 KW
Production Speed	500 m/min (Max.)	450 m/min (Max.)	400 m/min (Max.)
Take-up Spool	φ400-630 mm	φ400-630 mm	φ500-630 mm
Coiling Method	Automatic	Automatic	Automatic

GPT Automotive Wire Extrusion Line Application

The GPT automotive wire extrusion line is a specialized equipment designed specifically for producing automotive low-voltage cables that comply with SAE J1128 standards, suitable for wire harness manufacturing of American, Japanese, and new energy vehicle models. The details are as follows:
1. Used for producing charging cables for generators and auxiliary cables for starting motors;
2. Used for producing car light wiring harnesses and electric door and window control wires;
3. Used for producing dashboard wiring harnesses and audio system connection wires.
