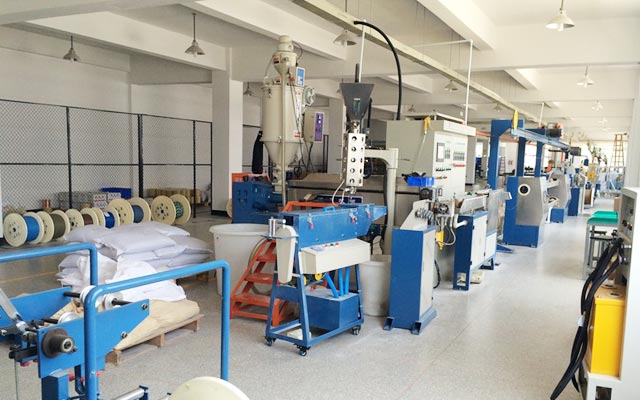

SXL Automotive Wire Extrusion Line

SXL Automotive Wire Extrusion Line

SXL cable (Cross Linked Polyolefin insulated cable) is a high-temperature automotive wire under the American standard (SAE J1127) system, mainly used in high-temperature areas such as engine compartments.

The SXL automotive wire extrusion line is a specialized equipment designed for producing high-temperature cross-linked polyolefin (XLPO) automotive cables that comply with SAE J1127 standards. It is suitable for extreme temperature environments such as engine compartments and exhaust systems.

Composition of Production Line

The SXL automotive wire extrusion line mainly includes the following core equipment:
Pay off Stand: Release copper conductors to maintain stable tension.
Preheating Unit: Heat the conductor to improve insulation adhesion.
Extruder: Melt PVC coat the conductor.
Cooling Tank: Segmented cooling and shaping insulation layer.
Haul off: Control the speed of the production line.
Take-up Reel: Automatic winding of finished wires.
Testing Equipment: Spark tester, laser diameter measuring system, etc.

Process Flow

Pay-off → Preheating → Extrusion coating → Cooling and shaping → Spark detection → Printing → Take-up.

SXL Automotive Wire Extrusion Line Datasheet

Model	50	60
Pay-off Type	Active or passive	Active or passive
Screw Diameter	φ50 mm	φ60 mm
Screw L/D Ratio	25:1	26:1
Extrusion Amount	70 kg/hr	110 kg/hr
Outlet Wire	φ0.75-4 mm	φ0.8-8 mm
Main Motor	11 KW	18.5 KW
Cooling Device	U type	U type
Storage Rack	Horizontal	Horizontal
Traction Power	4 KW	4 KW
Production Speed	500 m/min (Max.)	450 m/min (Max.)
Take-up Spool	φ400-630 mm	φ400-630 mm
Coiling Method	Automatic	Automatic

SXL Automotive Wire Extrusion Line Application

The SXL automotive wire extrusion line is a specialized equipment designed for producing high-temperature cross-linked polyolefin (XLPO) automotive cables that comply with SAE J1127 standards. It is suitable for extreme temperature environments such as engine compartments and exhaust systems. The details are as follows:
1. Used for producing engine ECU connection wires;
2. Used for producing sensor wires around turbochargers;
3. Used for producing exhaust system temperature sensor cables;
4. Used for producing power wiring harnesses for military vehicles;
5. Used for wiring in high-temperature areas of production engineering machinery;
6. Used for producing internal connecting wires of high-voltage battery packs for new energy vehicles;
7. Used for producing motor controller signal wires.
