The building wire extrusion line is a wire production equipment specifically used for producing building wiring wires. It uses extrusion molding technology to wrap insulation materials (such as PVC, XLPE) on conductors (copper / aluminum) to produce wires and cables that meet electrical safety standards.

Composition of Production Line

The building wire extrusion line mainly includes the following core equipment:
Pay off Stand: Release copper/aluminum conductors to maintain stable tension.
Preheating Unit: Heat the conductor to improve insulation adhesion.
Extruder: Melt PVC/XLPE and evenly coat the conductor.
Cooling Tank: Segmented cooling and shaping insulation layer.
Haul off: Control the speed of the production line.
Take-up Reel: Automatic winding of finished wires.
Testing Equipment: Spark tester, laser diameter measuring system, etc.

Process Flow

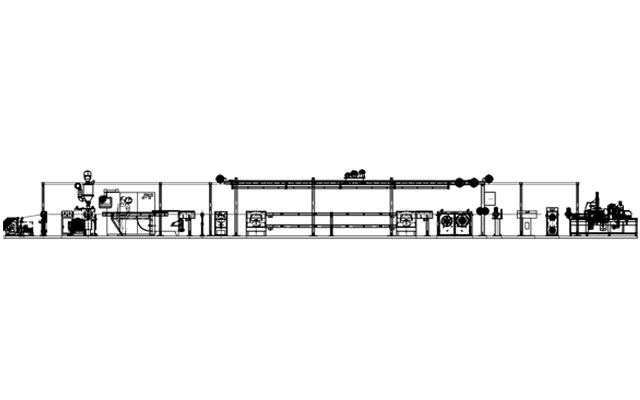

Pay-off → Preheating → Extrusion coating → Cooling and shaping → Spark detection → Printing → Take-up.

Building Wire Extrusion Line Datasheet

Model	50	60	70	80	90
Pay-off Type	Active or passive	Active or passive	Active or passive	Active or passive	Active or passive
Screw Diameter	φ50 mm	φ60 mm	φ70 mm	φ80 mm	φ90 mm
Screw L/D Ratio	25:1	26:1	26:1	26:1	26:1
Extrusion Amount	70 kg/hr	110 kg/hr	160 kg/hr	220 kg/hr	300 kg/hr
Outlet Wire	φ0.75-4 mm	φ0.8-8 mm	φ1.5-12 mm	φ2-18 mm	φ6-50 mm
Main Motor	11 KW	18.5 KW	37 KW	55 KW	75 KW
Cooling Device	U type	U type	U type	U type	U type
Storage Rack	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal
Traction Power	4 KW	4 KW	4 KW	5.5 KW	11 KW
Production Speed	500 m/min (Max.)	450 m/min (Max.)	400 m/min (Max.)	350 m/min (Max.)	300 m/min (Max.)
Take-up Spool	φ400-630 mm	φ400-630 mm	φ500-630 mm	φ800-1000 mm	φ1000-1250 mm
Coiling Method	Automatic	Automatic	Automatic	Automatic	Automatic

Building Wire Extrusion Line Application

The building wire extrusion line is suitable for producing insulated building wires made of thermoplastic materials such as PVC and XLPE, and can adapt to extrusion forms such as single-layer and dual color.
