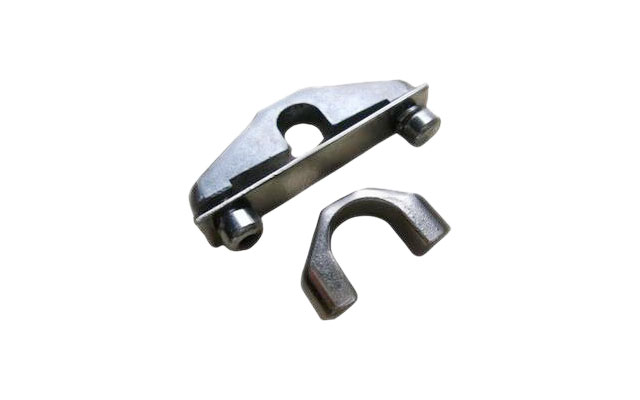

Guide Bracket
The guide bracket for stranding bow is a critical supporting component in wire/cable stranding and bunching equipment, primarily used to secure and adjust the position of the stranding bow (wire guide), ensuring precise wire routing during the stranding process. Manufactured from high-strength aluminum alloy or ceramic, it combines lightweight properties with durability. The guide bracket can be equipped with various specifications of ceramic eyelets mounted on the steel band to accommodate different wire diameters in stranding machines.
Guide Bracket Datasheet
| Name |
Guide Bracket |
| Center Distance |
13 mm |
| Weight |
0.02 kg |
| Material |
Aluminum alloy or ceramic |
| Quantity |
10 pcs/bag |
| Application |
Suitable for stranding bow of 30-40 mm width |
Guide Bracket Application
The guide bracket can be equipped with various specifications of ceramic eyelets mounted on the steel band to accommodate different wire diameters in stranding machines.
