Cable Insulation Material

Cable Insulation Material

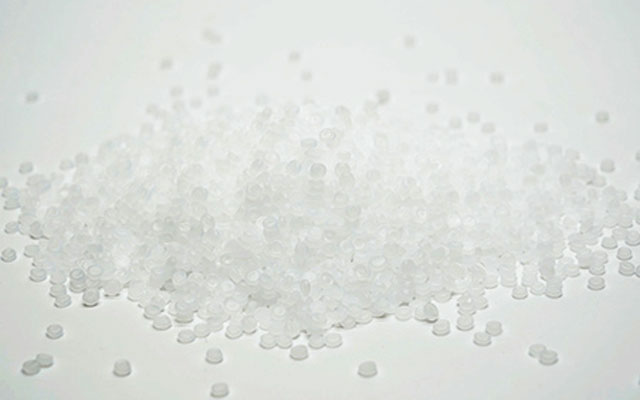

Cable Insulation Material is a pellet insulating material primarily composed of polymer compounds, manufactured through processes such as compounding and pelletizing. It is mainly used for producing the insulation layer of wires and cables. Its key characteristics include:
Pellet form: Facilitates extrusion, injection molding, and other processing techniques.
Electrical insulation: High volume resistivity and excellent dielectric strength.
Customizability: Adjustable formulations to achieve properties such as high-temperature resistance, flame retardancy, and halogen-free composition.

Cable Insulation Material List

Type	Typical	Characteristic
PVC	PVC insulation material	Low cost, easy to process, but containing halogens and burning toxic smoke
PE	LDPE/HDPE/XLPE	Excellent electrical performance, XLPE (cross-linked polyethylene) can withstand temperatures up to 90 ℃~150 ℃.
PP	PP insulation material	Good high-frequency performance, used for communication cables.
Rubber	EPR (Ethylene propylene rubber), Silicone rubber	Good flexibility, high temperature resistance (silicone rubber can reach 180 ℃), used for special cables.
Fluoroplastic	PTFE、FEP、PFA	High temperature resistance (200 ℃~260 ℃), corrosion resistance, used in aerospace and military industries.
TPE	TPU、POE	Combining rubber elasticity and plastic processability, used for flexible cables.
HFFR	PE/EVA-based compound	Environmentally friendly, low smoke and halogen-free, used in high safety requirements such as construction and rail transit.

Cable Insulation Material Application

Cable Insulation Material is a pellet insulating material primarily composed of polymer compounds, manufactured through processes such as compounding and pelletizing. It is mainly used for producing the insulation layer of wires and cables.
