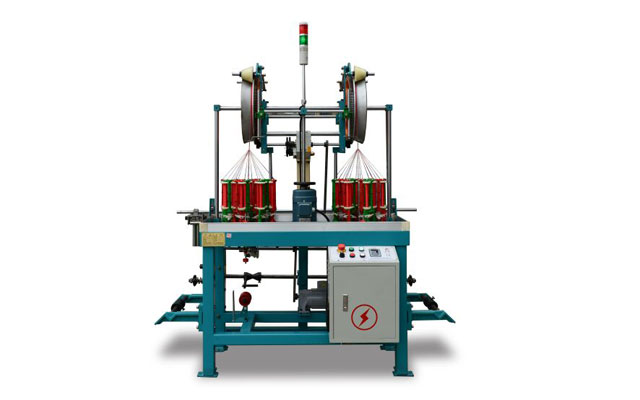

Headphone Cable Braiding Machine

Headphone Cable Braiding Machine

The headphone cable braiding machine is a precision equipment designed to weave reinforcement or decorative layers on the surface of the outer coating of headphone cords, mainly to meet the needs of the following industries:
Durability improvement: By weaving fibers, the bending and folding life can reach 10000+times (ordinary PVC wire only has 500 times)
Signal fidelity: The metal weaving layer can reduce 20dB electromagnetic interference (key indicator: weaving density ≥ 85%)
Appearance customization: Supports 0.1mm ultra-fine wire multi-color mixing (mainstream technology for RGB gaming headphone cables)
Core technological innovation:
Micro spindle technology (minimum processing of 0.03mm silver plated wire)
Laser real-time diameter measurement system (accuracy ± 0.01mm)
Low tension weaving control (<0.3N anti breakage wire)

Headphone Cable Braiding Machine Datasheet

Model	No. of Spindles	No. of Heads	Carrier Speed (rpm)	Power (KW)	Bobbin Size
8-1-300	8	1	83	0.75	A18
8-2-140	8	2	193	0.75	A11
8-2-160	8	2	158	0.75	A09
8-2-224	8	2	108	1.1	A18
8-2-300	8	2	83	1.1	A18
12-4-80	12	4	360	0.55	A01/A04
12-4-90	12	4	300	0.55	A01/A05
12-1-160	12	1	158	1.1	A14
12-1-224	12	1	108	1.1	A18
16-4-80	16	4	360	0.75	A01/A04
16-4-90	16	4	300	0.75	A01/A05
16-2-110	16	2	230	0.75	A09
16-2-120	16	2	218	0.75	A09
16-1-160	16	1	158	0.75	A11
16-1-224	16	1	108	0.75	A18
24-4-80	24	4	360	0.55	A01/A04
24-4-90	24	4	300	0.55	A01/A05
24-2-110	24	2	230	0.75	A09
24-1-120	24	1	210	0.75	A11
24-1-160	24	1	158	0.75	A18
24-1-168	24	1	154	0.75	A18
24-1-224	24	1	108	2*0.75	A18
32-2-80	32	2	360	0.75	A01/A04
32-2-90	32	2	300	0.75	A01/A05
32-1-110	32	1	230	0.55	A09
32-1-120	32	1	210	0.75	A09
32-1-160	32	1	158	1.1	A11
32-1-224	32	1	108	1.1	A18
40-1-80	40	1	360	0.75	A01/A04
40-1-90	40	1	300	0.75	A01/A05
40-1-110	40	1	230	2*0.55	A09
40-1-224	40	1	108	0.75	A13
40-2-80	40	2	360	0.75	A01/A04
40-2-90	40	2	300	0.75	A01/A05
44-1-80	44	1	360	0.75	A01/A04
44-1-90	44	1	300	0.75	A01/A05
48-1-80	48	1	360	0.75	A01/A04
48-1-90	48	1	300	0.75	A 01/A05
48-1-110	48	1	230	2*0.37	A09
48-1-120	48	1	210	2*0.75	A13
48-1-160	48	1	158	2*0.75	A18
48-1-224	48	1	108	3*0.55	A18
48-2-80	48	2	360	1.1	A01/A04
48-2-90	48	2	300	1.1	A01/A05

Bobbin Size Datasheet

item	Name	Bobbin Size	Item	Name	Bobbin Size
A01	80 Series Spindle Rod	φ42*142 mm	A11	120 Series Spindle Rod	φ63*200 mm
A02	80 Series Spindle Rod	φ42*109 mm	A12	120 Series Spindle Rod	φ63*200 mm
A03	90 Series Spindle Rod	φ43*86 mm	A13	130 Series Spindle Rod	φ70*212 mm
A04	90 Series Spindle Rod	φ47*139 mm	A14	160 Series Spindle Rod	φ67*158 mm
A05	90 Series Spindle Rod	φ43*113 mm	A15	160 Series Spindle Rod	φ68*210 mm
A06	90 Series Spindle Rod	φ50*179 mm	A16	168 Series Spindle Rod	φ61*48 mm
A07	110 Series Spindle Rod	φ57*178 mm	A17	168 Series Spindle Rod	φ87*323 mm
A08	110 Series Spindle Rod	φ57*178 mm	A18	224 Series Spindle Rod	φ86*206 mm
A09	110 Series Spindle Rod	φ56*93 mm	A19	320 Series Spindle Rod	φ150*380 mm
A10	110 Series Spindle Rod	φ40*26 mm	A20	204 Series Spindle Rod	φ102*322 mm

Headphone Cable Braiding Machine Application

The headphone cable braiding machine is a precision equipment designed to weave reinforcement or decorative layers on the surface of the outer coating of headphone cords.
