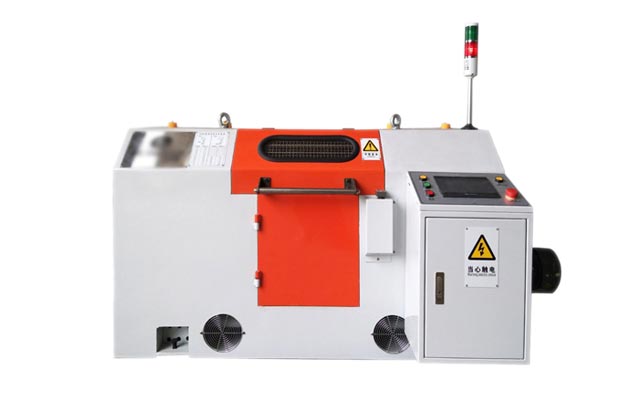

200 Silver-plated Copper Wire Double Twist Strander

200 Silver-plated Copper Wire Double Twist Strander

200 silver-plated copper wire double twist strander is a specialized wire stranding machine used for silver-plated copper wires, bare copper wires, and other wire materials ranging from 0.025-0.08 mm.

200 Silver-plated Copper Wire Double Twist Strander Datasheet

Model	200
Inlet Wire Dia.	0.025-0.08 mm
Stranded Cross Section	0.0034-0.035 mm2
Lay Length	0.94-4.08 mm
Rotation Speed	5000 rpm
Main Motor	3HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ200 mm
Lifting System	Manual operation
Noise Level	75 dB

200 Silver-plated Copper Wire Double Twist Strander Application

200 silver-plated copper wire double twist strander is suitable for silver-plated wire, bare copper wire of power wires, telephone wires, audio wires, video wires, car wires, and network wires.
