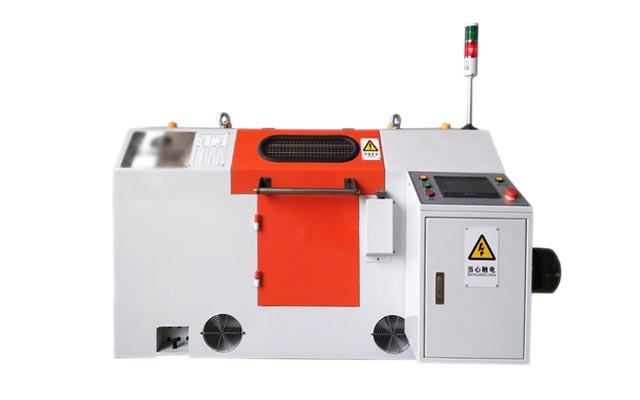

Silver-plated Copper Wire Double Twist Stranding Machine

Silver-plated Copper Wire Double Twist Stranding Machine

The silver-plated copper wire double twist stranding machine is a high-precision equipment designed for twisting and processing silver-plated copper wire, widely used in high-end fields such as high-frequency cables, aerospace cables, 5G communication wires, medical equipment wires, etc. Its core features are oxidation resistance, low resistance, and high signal fidelity, ensuring that the silver plating layer is not damaged during the twisting process.

Silver-plated Copper Wire Double Twist Stranding Machine Datasheet

Model	200	300	400	500
Inlet Wire Dia.	0.025-0.08 mm	0.05-0.28 mm	0.08-0.45 mm	0.08-0.45 mm
Stranded Cross Section	0.0034-0.035 mm2	0.137-0.45 mm2	0.35-1.25 mm2	0.035-2.00 mm2
Lay Length	0.94-4.08 mm	1.34-12.5 mm	4.06-31.5 mm	4.22-41.62 mm
Rotation Speed	5000 rpm	3000 rpm	2500/3500 rpm	2200/3000 rpm
Main Motor	3HP	3HP	5HP/7.5HP	5HP/7.5HP
Lay Direction	S/Z	S/Z	S/Z	S/Z
Traversing Device	/	/	/	/
Braking System	Electronic brake	Electronic brake	Electronic brake	Electronic brake
Take-up Tension	Magnetic powder clutch control	Magnetic powder clutch control	Magnetic powder clutch control	Magnetic powder clutch control
Take-up Spool	φ200 mm	φ300 mm	φ400 mm	φ500 mm
Lifting System	Manual operation	Manual operation	Manual operation	Manual operation
Noise Level	75 dB	75 dB	75 dB	75 dB

Silver-plated Copper Wire Double Twist Stranding Machine Application

The silver-plated copper wire double twist stranding machine is a high-precision equipment designed for twisting and processing silver-plated copper wire, widely used in high-end fields such as high-frequency cables, aerospace cables, 5G communication wires, medical equipment wires, etc.
