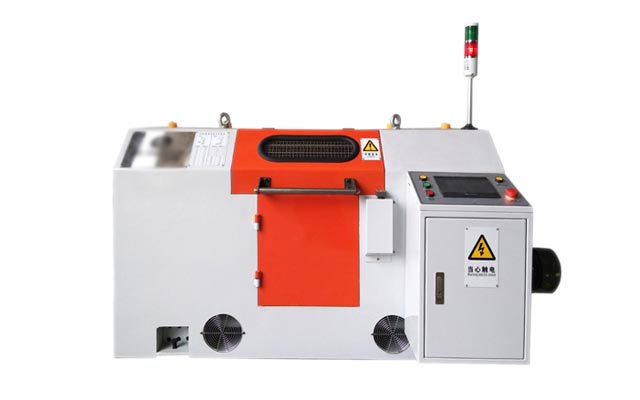

200 Tinned Copper Wire Double Twist Strander

200 Tinned Copper Wire Double Twist Strander

200 tinned copper wire double twist strander is a specialized wire stranding machine used for tinned copper wires, alloy wires, and other ultrafine wire materials ranging from 0.025-0.08 mm.

200 Tinned Copper Wire Double Twist Strander Datasheet

Model	200
Inlet Wire Dia.	0.025-0.08 mm
Stranded Cross Section	0.0034-0.035 mm2
Lay Length	0.94-4.08 mm
Rotation Speed	5000 rpm
Main Motor	3HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ200 mm
Lifting System	Manual operation
Noise Level	75 dB

200 Tinned Copper Wire Double Twist Strander Application

200 tinned copper wire double twist strander is suitable for tinned copper wire with 7 strands or more.
