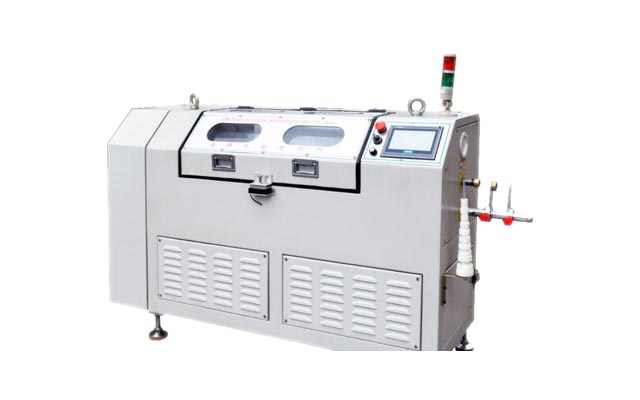

130 Tinned Copper Wire Double Twist Strander

130 Tinned Copper Wire Double Twist Strander

The 130 tinned copper wire double twist strander is a specialized wire stranding machine used for tinned copper wires, alloy wires, and other ultrafine wire materials ranging from 0.02-0.03 mm.

130 Tinned Copper Wire Double Twist Strander Datasheet

Model	130
Inlet Wire Dia.	0.02-0.03 mm
Stranded Cross Section	0.002-0.03 mm2
Lay Length	0.75-1.25 mm
Rotation Speed	4000 rpm
Main Motor	2HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ130 mm
Lifting System	Manual operation
Noise Level	75 dB

130 Tinned Copper Wire Double Twist Strander Application

130 tinned copper wire double twist strander is suitable for twisting extremely fine wires such as tinned copper wire and copper alloy wire.
