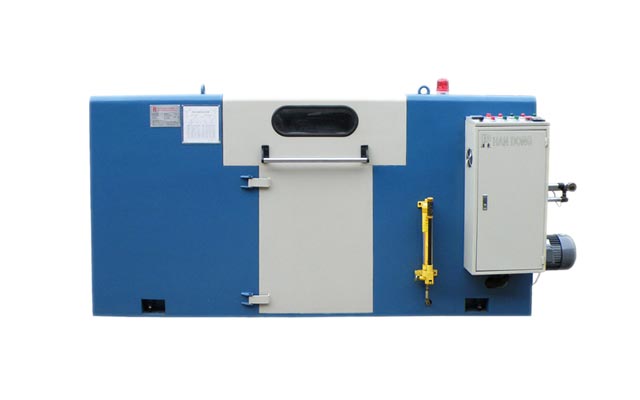

650 Fine Copper Wire Double Twist Strander

650 Fine Copper Wire Double Twist Strander

650 fine copper wire double twist strander is a specialized wire stranding machine used for conductors such as 7 strands or more of 0.16-1.00 mm fine copper wire.

650 Fine Copper Wire Double Twist Strander Datasheet

Model	650
Inlet Wire Dia.	0.16-1.00 mm
Stranded Cross Section	0.40-6.00 mm2
Lay Length	11.15-60.24 mm
Rotation Speed	1600 rpm
Main Motor	10HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ630 mm
Lifting System	Manual operation
Noise Level	80 dB

650 Fine Copper Wire Double Twist Strander Application

650 fine copper wire double twist strander is suitable for twisting copper-clad aluminum, copper-clad steel, bare copper wire, enameled wire, alloy wire, and tin plated wire with seven or more strands.
