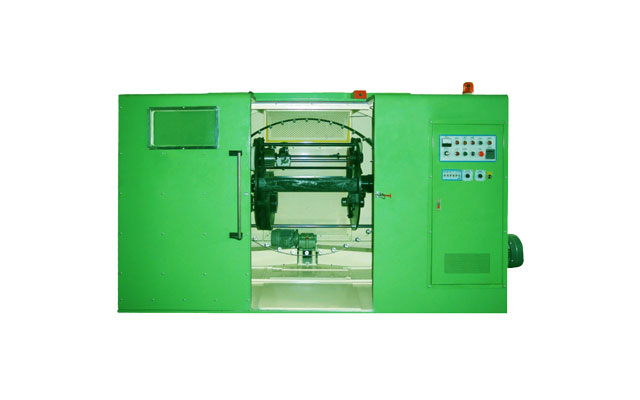

800 Medium Copper Wire Double Twist Strander

800 Medium Copper Wire Double Twist Strander

800 medium copper wire double twist strander is a specialized wire stranding machine used for conductors such as 7 strands or more of 0.38-1.00 mm medium copper wire.

800 Medium Copper Wire Double Twist Strander Datasheet

Model	800
Inlet Wire Dia.	0.38-1.00 mm
Stranded Cross Section	0.80-12.00 mm2
Lay Length	22.51-153.32 mm
Rotation Speed	800 rpm
Main Motor	15HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ800 mm
Lifting System	Manual operation
Noise Level	80 dB

800 Medium Copper Wire Double Twist Strander Application

800 medium copper wire double twist strander is suitable for copper wires and alloy wires with 7 or more strands, and can also be used for core wires of electronic wires, power wires, and network wires with 7 or more strands.
