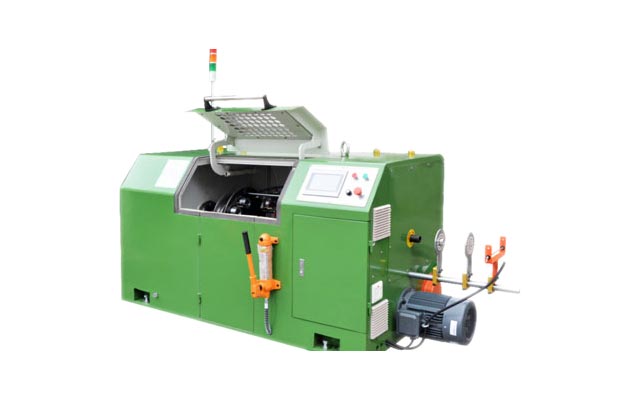

Tinned Copper Wire Double Twist Stranding Machine

Tinned Copper Wire Double Twist Stranding Machine

Tinned copper wire double twist stranding machine is a specialized equipment for stranding tinned copper wire, widely used in fields such as power cables, automotive wiring harnesses, electronic connection wires, and home appliance wiring. Its core features are oxidation resistance, corrosion resistance, and excellent welding performance, ensuring that the tin plating layer remains intact during the twisting process, while meeting the requirements of conductor conductivity and mechanical strength.

Tinned Copper Wire Double Twist Stranding Machine Datasheet

Model	130	200	300	400	500
Inlet Wire Dia.	0.02-0.03 mm	0.025-0.08 mm	0.05-0.28 mm	0.08-0.45 mm	0.08-0.45 mm
Stranded Cross Section	0.002-0.03 mm2	0.0034-0.035 mm2	0.137-0.45 mm2	0.35-1.25 mm2	0.035-2.00 mm2
Lay Length	0.75-1.25 mm	0.94-4.08 mm	1.34-12.5 mm	4.06-31.5 mm	4.22-41.62 mm
Rotation Speed	4000 rpm	5000 rpm	3000 rpm	2500/3500 rpm	2200/3000 rpm
Main Motor	2HP	3HP	3HP	5HP/7.5HP	5HP/7.5HP
Lay Direction	S/Z	S/Z	S/Z	S/Z	S/Z
Traversing Device	/	/	/	/	/
Braking System	Electronic brake	Electronic brake	Electronic brake	Electronic brake	Electronic brake
Take-up Tension	Magnetic powder clutch control	Magnetic powder clutch control	Magnetic powder clutch control	Magnetic powder clutch control	Magnetic powder clutch control
Take-up Spool	φ130 mm	φ200 mm	φ300 mm	φ400 mm	φ500 mm
Lifting System	Manual operation	Manual operation	Manual operation	Manual operation	Manual operation
Noise Level	75 dB	75 dB	75 dB	75 dB	75 dB

Tinned Copper Wire Double Twist Stranding Machine Application

Tinned copper wire double twist stranding machine is a specialized equipment for stranding tinned copper wire, widely used in fields such as power cables, automotive wiring harnesses, electronic connection wires, and home appliance wiring.
