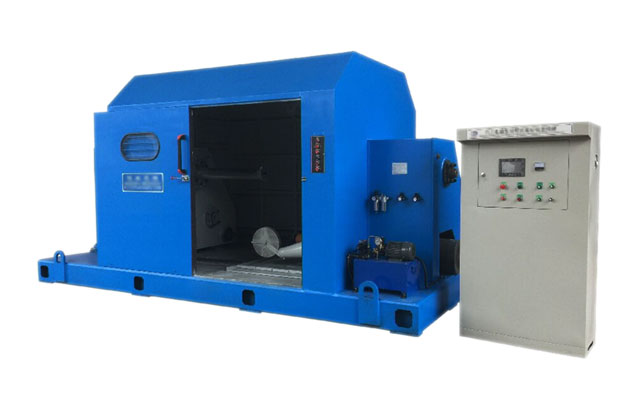

1250 Cantilever Type Cable Core Wire Single Twist Strander

1250 Cantilever Type Cable Core Wire Single Twist Strander

1250 cantilever type cable core wire single twist strander is a specialized stranding machine used for stranding cable insulation core wires. It is suitable for stranding multiple core wires such as data cables (Class 5, Class 6, Class 7), high-frequency cables, computer cables, power cables, etc. into cables and synchronously wrapping them.

Equipment Composition

1. Eye mold and meter counter set: 1 set (Included);
2. 1250 single twist stranding machine: 1 set (Included);
3. PLC computer control box: 1 set (Included);
4. Central wrapping machine: 1 set (optional);
5. Side taping machine: 1 set (optional);
6. 12-head dual-row passive tension pay-off stand: 1 set (optional);
7. 630 torsion-free pay-off machine: 1 set (optional).

Performance Characteristics

1. The host machine adopts a cantilever structure;
2. PLC program+variable frequency speed control+pneumatic control. With excellent design features such as stepless setting of twist distance, no lead wheel, and no dynamic disc arrangement, the tension of the cable is ensured to be uniform;
3. In order to ensure the structural stability after cable formation, a single button cable structure is adopted, and a large-diameter turning guide wheel is designed to minimize bending as much as possible;
4. Through mechanical linkage and electrical dual control, the unit ensures excellent synchronization and stable twisting distance in four states: start-up, normal operation, slow stop, and emergency stop;
5. The overall performance is stable and the operation is simple.

1250 Cantilever Type Cable Core Wire Single Twist Strander Datasheet

Model	1250
Inlet Wire Dia.	1-4 mm
Stranded Wire Dia. (Max.)	25 mm
Lay Length	40-250 mm
Rotation Speed	500 rpm
Main Motor	25HP
Lay Direction	S/Z
Traversing Motor	1HP
Braking System	Pneumatic disc brake
Take-up Motor	5HP
Take-up Spool	φ1250 mm
Lifting System	Electric hydraulic lifting

1250 Cantilever Type Cable Core Wire Single Twist Strander Application

1250 cantilever type cable core wire single twist strander is a specialized stranding machine used for stranding cable insulation core wires. It is suitable for stranding multiple core wires such as data cables (Class 5, Class 6, Class 7), high-frequency cables, computer cables, power cables, etc. into cables and synchronously wrapping them.
