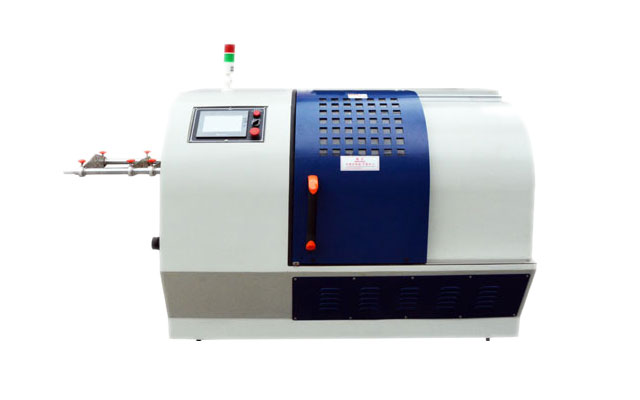

Copper-clad Steel Wire Single Twist Stranding Machine

Copper-clad Steel Wire Single Twist Stranding Machine

The copper-clad steel wire single twist stranding machine is a precision equipment specifically designed for the stranding and processing of copper-clad steel wire (CCS). Through the single stranding process, multiple copper-clad steel wires or mixed metal wires are stranded into high-strength conductor structures. It is mainly used for stranding hard materials such as copper-clad steel and copper alloy wires.

Features & Performance

1. Suitable for stranding hard-drawn wires such as copper-clad steel (CCS) wire and copper alloys;
2. Equipped with built-in single-twisting function for uniform strand formation;
3. User-friendly operation and easy maintenance for efficient production;
4. High-quality components ensure stable operation and extended service life;
5. Inverter-controlled motor enables adjustable speed and provides overload protection;
6. Electronic pitch control maintains consistent twist pitch during start/stop;
7. Standardized spare parts supply and comprehensive after-sales service.

Copper-clad Steel Wire Single Twist Stranding Machine Datasheet

Model	300
Inlet Wire Dia.	0.05-0.16 mm
Stranded Cross Section	/
Lay Length	1-30 mm
Rotation Speed	1500 rpm
Main Motor	3HP
Lay Direction	S/Z
Traversing Device	Servo ball screw traversing system
Take-up Spool	φ300 mm
Noise Level	75 dB

Copper-clad Steel Wire Single Twist Stranding Machine Application

The copper-clad steel wire single twist stranding machine is a precision equipment specifically designed for the stranding and processing of copper-clad steel wire (CCS). Through the single stranding process, multiple copper-clad steel wires or mixed metal wires are stranded into high-strength conductor structures. It is mainly used for stranding hard materials such as copper-clad steel and copper alloy wires.
