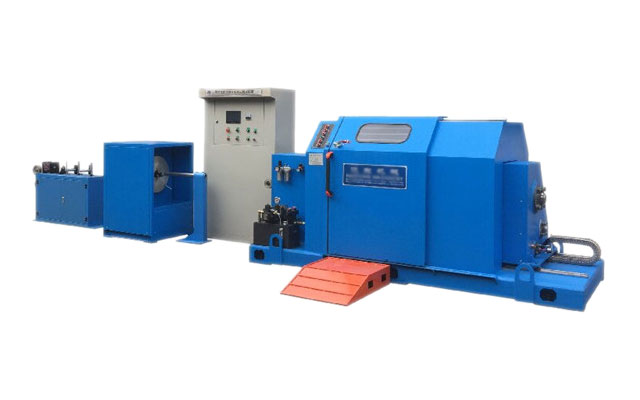

630 Cantilever Type Cable Core Wire Single Twist Strander

630 Cantilever Type Cable Core Wire Single Twist Strander

630 cantilever type cable core wire single twist strander is a specialized stranding machine used for stranding cable insulation core wires. It is suitable for stranding multiple core wires such as data cables (Class 5, Class 6, Class 7), high-frequency cables, computer cables, power cables, etc. into cables and synchronously wrapping them.

Equipment Composition

1. Eye mold and meter counter set: 1 set (Included);
2. 630 single twist stranding machine: 1 set (Included);
3. PLC computer control box: 1 set (Included);
4. Central wrapping machine: 1 set (optional);
5. Side taping machine: 1 set (optional);
6. Dual-row passive tension pay-off stand: 1 set (optional);
7. Dual-row magnetic tension pay-off stand: 1 set (optional);
8. 500 double-head active pay-off machine: 1 set (optional);
9. 500 torsion-free pay-off machine: 1 set (optional).

Performance Characteristics

1. The host machine adopts a cantilever structure;
2. PLC program+variable frequency speed control+pneumatic control. With excellent design features such as stepless setting of twist distance, no lead wheel, and no dynamic disc arrangement, the tension of the cable is ensured to be uniform;
3. In order to ensure the structural stability after cable formation, a single button cable structure is adopted, and a large-diameter turning guide wheel is designed to minimize bending as much as possible;
4. Through mechanical linkage and electrical dual control, the unit ensures excellent synchronization and stable twisting distance in four states: start-up, normal operation, slow stop, and emergency stop;
5. The overall performance is stable and the operation is simple.

630 Cantilever Type Cable Core Wire Single Twist Strander Datasheet

Model	630
Inlet Wire Dia.	0.7-3.0 mm
Stranded Wire Dia. (Max.)	15 mm
Lay Length	20-200 mm
Rotation Speed	950 rpm
Main Motor	11HP
Lay Direction	S/Z
Traversing Motor	1/2HP
Braking System	Pneumatic disc brake
Take-up Motor	3HP
Take-up Spool	φ630 mm
Lifting System	Electric hydraulic lifting

630 Cantilever Type Cable Core Wire Single Twist Strander Application

630 cantilever type cable core wire single twist strander is a specialized stranding machine used for stranding cable insulation core wires. It is suitable for stranding multiple core wires such as data cables (Class 5, Class 6, Class 7), high-frequency cables, computer cables, power cables, etc. into cables and synchronously wrapping them.
