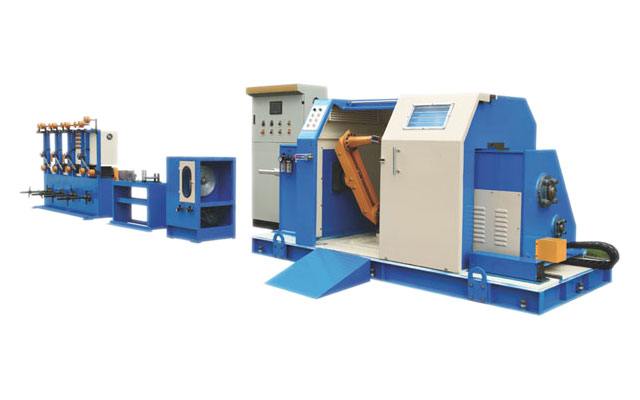

Cable Insulated Core Wire Single Twist Stranding Machine

Cable Insulated Core Wire Single Twist Stranding Machine

Cable insulated core wire single twist stranding machine is a mechanical equipment specifically designed for stranding cable cores with insulation layers, mainly used in cable manufacturing industries such as power cables, communication cables, and control cables.

Cable Insulated Core Wire Single Twist Stranding Machine Datasheet

Model	630	800	1000	1250
Inlet Wire Dia.	0.7-3.0 mm	1-4 mm	1-4 mm	1-4 mm
Stranded Wire Dia. (Max.)	15 mm	20 mm	25 mm	25 mm
Lay Length	20-200 mm	30-200 mm	30-200 mm	40-250 mm
Rotation Speed	950 rpm	700 rpm	600 rpm	500 rpm
Main Motor	11HP	15HP	20HP	25HP
Lay Direction	S/Z	S/Z	S/Z	S/Z
Traversing Motor	1/2HP	1HP	1HP	1HP
Braking System	Pneumatic disc brake	Pneumatic disc brake	Pneumatic disc brake	Pneumatic disc brake
Take-up Motor	3HP	5.5HP	5HP	5HP
Take-up Spool	φ630 mm	φ800 mm	φ1000 mm	φ1250 mm
Lifting System	Electric hydraulic lifting	Electric hydraulic lifting	Electric hydraulic lifting	Electric hydraulic lifting

Cable Insulated Core Wire Single Twist Stranding Machine Application

Cable insulated core wire single twist stranding machine is suitable for controlling cables, communication cables, data cables, coaxial cables, etc. PE or PVC coated core wire stranding and center or side wrapping can be completed in one go. It is mainly used for stranding wire cores with high precision requirements.
