End-shaft Pay-off Machine

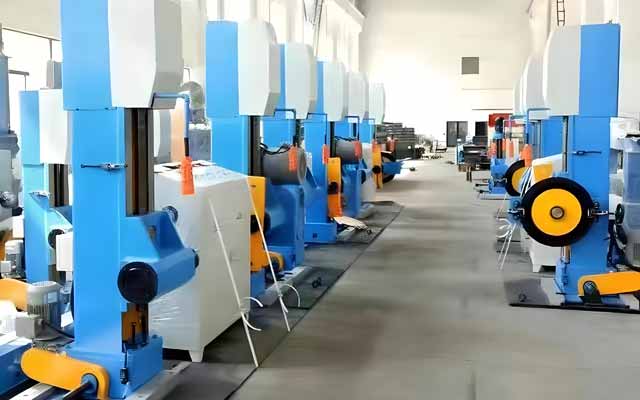

End-shaft pay-off machine is a simple and easy to operate pay off device, mainly used in the production and processing of wires, cables, optical fibers and other wires. Its core feature is the use of end support shaft design, which fixes the wire reel by mechanical means and is suitable for the laying operation of large and medium-sized wire reels.
Characteristic
1. This function is capable of performing actions such as clamping, relaxing, lifting, lowering, and vertically moving the spool, ensuring reliable positioning of the spool;
2. The lifting mechanism can lift and lower the left and right top pins simultaneously, or separately, to adjust the consistency of the height of the wire spool circumference on both sides;
3. The left and right columns can be moved simultaneously or separately to facilitate adjusting the center position of the spool and clamping the spool;
4. It can automatically protect against overload;
5. Adjust the tension of the unwinding by adjusting the tightness of the friction disc clamped by the symmetrical friction disc.
End-shaft Pay-off Machine Datasheet
| Name |
End-shaft Pay-off Machine |
| Dia. of Wires |
12-120 mm |
| Lifting Range |
600-1330 mm |
| Lifting Speed |
0.6 m/min |
| Wire Spool |
φ1250-2500 mm |
| Motor Power |
1.1 KW |
| Tension Control |
Disc friction disc |
| Payload |
Max. 12 tons |
End-shaft Pay-off Machine Application
End-shaft pay-off machine is a simple and easy to operate pay off device, mainly used in the production and processing of wires, cables, optical fibers and other wires. Its core feature is the use of end support shaft design, which fixes the wire reel by mechanical means and is suitable for the laying operation of large and medium-sized wire reels.
