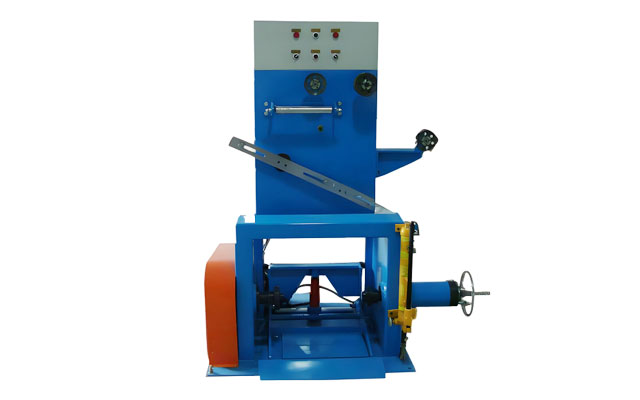

Single-spindle Active Tension Pay-off Machine

Single-spindle Active Tension Pay-off Machine

Single-spindle active tension pay off machine is a precision pay off equipment used in the production process of wires, cables or other linear materials, mainly used to control the stable pay off of materials and maintain constant tension.

Core Features

Active tension control: The frequency converter controls the tension of the unwinding process to ensure constant tension and avoid material stretching or relaxation.
Single axis design: Compact structure, suitable for use with a diameter of 630 wire reels.

Single-spindle Active Tension Pay-off Machine Datasheet

Name	Single-spindle Active Tension Pay-off Machine
Dia. of Wires	2-15 mm
No. of Wires	According to customer requirements
Line Speed	0-300 m/min
Wire Spool	φ630 mm
Application	Used for unwinding in extrusion production, active pay-off for coiling machines, and pay-off for wire cutting machines, etc.
Tension Control	The frequency converter controls the tension of the wire and adjusts it automatically.
Braking System	Equipped with start, stop, forward, and reverse control devices, it automatically tracks the speed of the wire receiving host and automatically stops when disconnected.
Spool Lifting	Hydraulic lifting, base slide plate can move horizontally, manual spool locking.

Single-spindle Active Tension Pay-off Machine Application

Single-spindle active tension pay off machine is a precision pay off equipment used in the production process of wires, cables or other linear materials, mainly used to control the stable pay off of materials and maintain constant tension.
