Multi-spindle Active Tension Pay-off Machine

Multi-spindle Active Tension Pay-off Machine

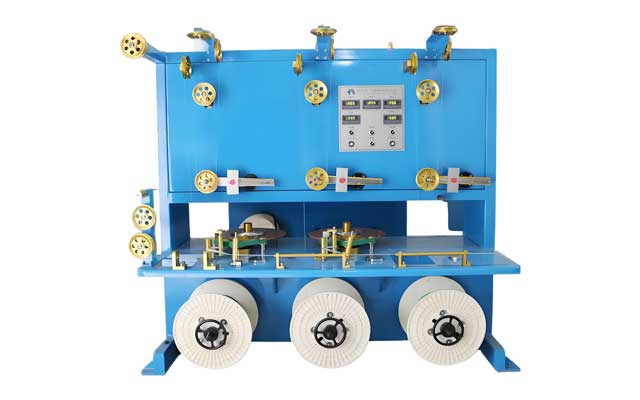

The multi-spindle active tension pay-off machine is an advanced unwinding system designed for simultaneous, precision-controlled feeding of multiple wires or cables in high-efficiency production lines. It is suitable for cable unwinding from φ400-800 mm spools. It is also applicable for active pay-off in coiling machines, extrusion production lines, and active feeding for wire cutting machines.

Multi-spindle Active Tension Pay-off Machine Datasheet

Name	Multi-spindle Active Tension Pay-off Machine
Dia. of Wires	0-10 mm
Line Speed	0-200 m/min
Wire Spool	φ400-800 mm
Application	Used for unwinding in extrusion production, active pay-off for coiling machines, and pay-off for wire cutting machines, etc.
Tension Control	The frequency converter controls the tension of the wire and adjusts it automatically.
Braking System	Equipped with start, stop, forward, and reverse control devices, it automatically tracks the speed of the wire receiving host and automatically stops when disconnected.

Multi-spindle Active Tension Pay-off Machine Application

The multi-spindle active tension pay-off machine is an advanced unwinding system designed for simultaneous, precision-controlled feeding of multiple wires or cables in high-efficiency production lines. It is suitable for cable unwinding from φ400-800 mm spools. It is also applicable for active pay-off in coiling machines, extrusion production lines, and active feeding for wire cutting machines.
