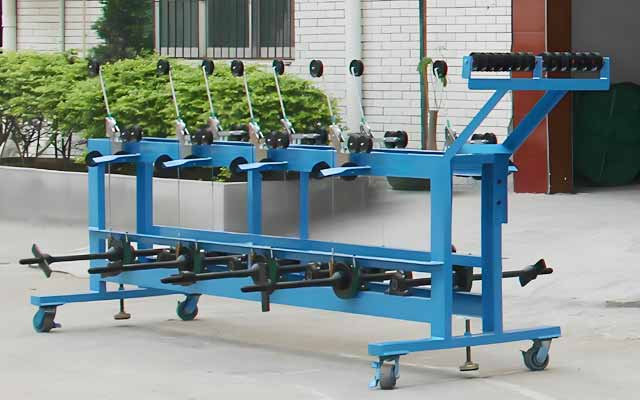

Horizontal Tension Pay-off Stand

Horizontal Tension Pay-off Stand

The Horizontal Tension Pay-off Stand is a material unwinding device designed to support and feed coiled wires, cables, or other linear materials in a horizontal orientation. It features precise tension control mechanisms to ensure smooth, tangle-free material release during production or processing.

Horizontal Tension Pay-off Stand Datasheet

Name	Horizontal Tension Pay-off Stand
Dia. of Wires	0.3-3.0 mm
No. of Wires	According to customer requirements
Line Speed	0-300 m/min
Wire Spool	OD 400-500 mm
Application	Suitable for laying copper wires and insulated core wires
Tension Control	Tension control is achieved through the combination of eccentric wheel and guide wheel springs.
Braking System	Equipped with belt friction braking, it features automatic braking for both internal and external wire breaks, and automatic stop when the preset length is reached.
Dia. of Spool Shaft	/
Load Capacity	Max. 100 kg for the pay-off stand spool

Horizontal Tension Pay-off Stand Application

The Horizontal Tension Pay-off Stand is a material unwinding device designed to support and feed coiled wires, cables, or other linear materials in a horizontal orientation. It features precise tension control mechanisms to ensure smooth, tangle-free material release during production or processing. It is mainly used for laying copper wires, twisted wires, core wires, etc.
