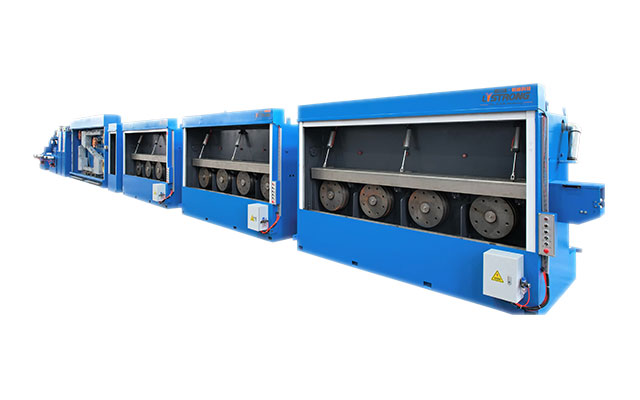

Coarse Aluminum Wire Drawing Machine

Coarse Aluminum Wire Drawing Machine

Coarse aluminum wire drawing machine is a mechanical equipment specifically used to process coarse aluminum wire (such as copper rod with a diameter of 9.5 mm) into finer aluminum wire (such as 1.20-4.50 mm) through multi pass stretching process.

Main Components

Pay-off Unit
Place the original copper wire coil to ensure continuous feeding;
Wire Drawing Mold
Composed of multiple molds with different aperture sizes, the copper wire is stretched step by step;
Traction Device
Control the constant tension of copper wire during the stretching process to prevent wire breakage;
Lubrication System
Reduce friction and heat by immersion or spray lubrication, and extend mold life;
Take-up Device
Wrap the stretched thin copper wire neatly for subsequent processing.

Coarse Aluminum Wire Drawing Machine Datasheet

Item/Model	CB Series	CS Series	CC Series	CE Series
No. of Wires	1/2	1	1	1
Inlet Wire Dia.	9.5 mm	9.5 mm	9.5 mm	9.5 mm
Outlet Wire Dia.	1.2-4.5 mm	1.2-4.5 mm	1.6-3.5 mm	1.38-2.78 mm
Line Speed (Max.)	/	1500 m/min	800 m/min	600 m/min
No. of Dies (Max.)	13-26	13	9-13	13
Drawing Wheel	φ450 mm	φ450 mm	φ450 mm	φ450 mm
Fixed Speed Wheel	φ450 mm	φ450 mm	φ450 mm	/
Main Motor	/	/	160-200 KW	90 kW
Take-up Motor	/	/	15 KW	11 KW
Traverse Motor	/	/	/	/
Control Mode	AC motor	AC motor	Frequency converter	/
Traverse Method	/	/	Gear motor	Gear motor
Lubrication	Total immersion	Total immersion	Spray type	Spray type
Voltage	/	/	380V	/
Brake	/	/	Pneumatic brake	/
Take-up Spool	/	φ500-630 mm	φ800 mm	φ500 mm

Coarse Aluminum Wire Drawing Machine Application

The coarse aluminum wire drawing machine is mainly used to pull large diameter aluminum rods to medium diameter, which is the first key process of aluminum wire processing. The details are as follows:
Power Transmission and Cable Manufacturing
High voltage overhead conductor (AAC/ACSR): Thick aluminum poles are pulled into medium diameter aluminum wires and then twisted into aluminum stranded wires for use in high-voltage transmission lines.
Power cables: As the preceding process of cable conductors, they provide semi-finished aluminum wires for subsequent medium and fine drawing.
Aluminum Profiles and Metal Products
Aluminum Welding Wire: Coarse drawn aluminum wire can be used as a welding wire substrate and further processed to a specific diameter (such as 1.2mm~3.2mm).
Hardware Products: Used for manufacturing metal products such as aluminum nails, aluminum rivets, aluminum wire mesh, etc.
New Energy and Automotive Industry
Battery Busbar: The aluminum busbar in the battery pack of new energy vehicles needs to be rolled or drawn from thick aluminum wire.
EV Charging Cables: Coarse aluminum wire is the raw material for high-voltage and high current conductors.
Building and Engineering Materials
Aluminum Clad Steel Wire: Coarse aluminum wire can be used as a coating material to enhance the corrosion resistance of the steel core.
Building structure reinforcement wire: used for concrete reinforcement, aluminum wire mesh fences, etc.
