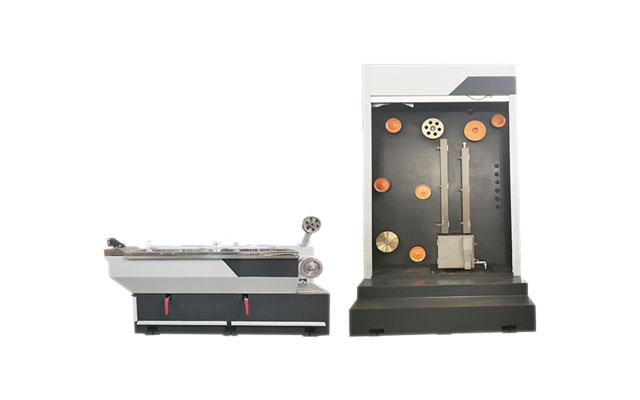

MS17S Medium Brass Wire Drawing Machine Line with Continuous Annealing

MS17S Medium Brass Wire Drawing Machine Line with Continuous Annealing

MS17S medium brass wire drawing machine line with continuous annealing is a key equipment specifically designed to process coarse brass wire with a diameter of 1.8 mm to 3.0 mm into medium brass wire with a diameter of 0.4 mm to 1.6 mm through multiple passes of stretching. This device is mainly used in industries such as hardware products, electronic appliances, and cable manufacturing.

Main Structure

Pay-off system: Active/passive pay-off, equipped with tension control.
Wire drawing host: Mold box, wire drawing wheel (tower wheel or inline type), lubrication and cooling system.
Annealing device: Eliminates work hardening and improves wire flexibility.
Take-up system: I-shaped wheel or double disc winding, precise wire arrangement ensures neat winding.
Control system: PLC+human-machine interface (HMI), realizing the adjustment of parameters such as speed, tension, temperature, etc.

MS17S Medium Brass Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	MS17S
No. of Wires	1
Inlet Wire Dia.	1.8-3.0 mm
Outlet Wire Dia.	0.4-1.6 mm
Line Speed (Max.)	1000 m/min
No. of Dies (Max.)	17
Slip Ratio of M/C	15%
Slip Ratio of Fixed Speed Wheel	10%
Main Motor	45 KW
Take-up Motor	15 KW
Annealing Motor	120 KVA
Annealing Method	DC three-section annealing
Traverse Method	Gear motor
Brake	Pneumatic brake
Take-up Spool	φ630 mm

MS17S Medium Brass Wire Drawing Machine Line with Continuous Annealing Application

MS17S medium brass wire drawing machine line with continuous annealing is mainly used in industries such as hardware products, electronic appliances, and cable manufacturing. The details are as follows:
Electronic Enterprises
Connector terminal: a connector used for electronic devices such as mobile phones and computers.
Lacquered wire substrate: Used for motor and transformer windings after painting.
Shielded wire: The shielding layer of coaxial cables and communication cables.
Hardware Products
Zipper teeth: The core material of brass zippers used in clothing and luggage.
Rivets/screws: precision hardware fasteners.
Decorative line: Metal edging for furniture and handicrafts.
Industrial and Special Purpose
Welding wire: brass gas welding wire, brazing material.
Spring wire: elastic element, precision spring.
Instrument string: Metal string of some instruments.
