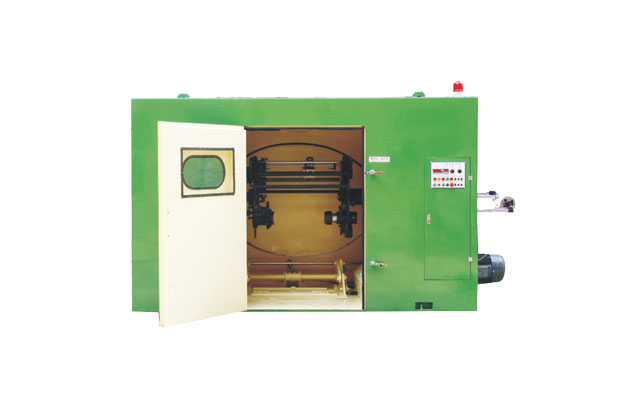

1000 Medium Copper Wire Double Twist Strander

1000 Medium Copper Wire Double Twist Strander

1000 medium copper wire double twist strander is a specialized wire stranding machine used for conductors such as 7 strands or more of 0.42-4.00 mm medium copper wire.

1000 Medium Copper Wire Double Twist Strander Datasheet

Model	1000
Inlet Wire Dia.	0.42-4.00 mm
Stranded Cross Section	1-90 mm2
Lay Length	48.10-155.90 mm
Rotation Speed	500 rpm
Main Motor	20HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ1000 mm
Lifting System	Manual operation
Noise Level	80 dB

1000 Medium Copper Wire Double Twist Strander Application

1000 medium copper wire double twist strander is suitable for copper wires with 7 or more strands, and can also be used for core wires of electronic wires, power wires, and network wires with 7 or more strands.
