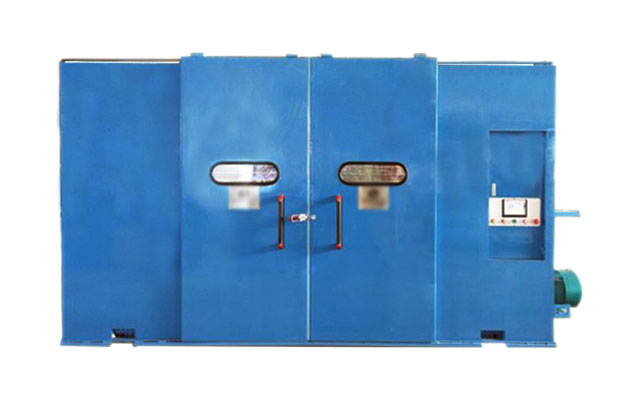

1250 Coarse Copper Wire Double Twist Strander

1250 Coarse Copper Wire Double Twist Strander

1250 coarse copper wire double twist strander is a specialized wire stranding machine used for conductors such as 7 strands or more of 1.00-6.00 mm coarse copper wire.

1250 Coarse Copper Wire Double Twist Strander Datasheet

Model	1250
Inlet Wire Dia.	1.00-6.00 mm
Stranded Cross Section	7-200 mm2
Lay Length	48.10-155.90 mm
Rotation Speed	500 rpm
Main Motor	25HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ1250 mm
Lifting System	Manual operation
Noise Level	85 dB

1250 Coarse Copper Wire Double Twist Strander Application

1250 coarse copper wire double twist strander is suitable for copper wires with 7 or more strands, and can also be used for core wires of electronic wires, power wires, and network wires with 7 or more strands.
